Jaw Crushers

Jaw Crushers

  • Categories:
  • Crushers

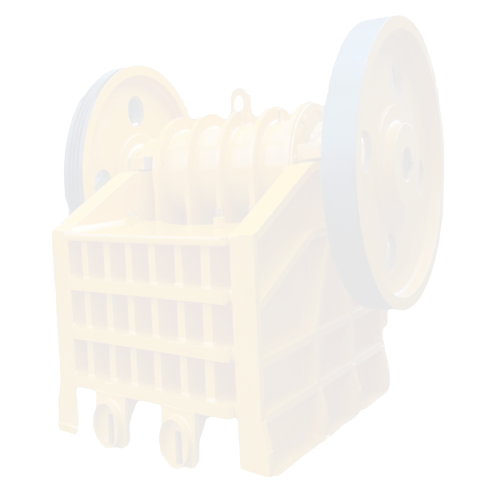

The jaw crusher is designed for safe and straightforward operation, leveraging reliable technology with a welded construction. It delivers high capacity and substantial size reduction. The symmetrical crushing chamber and optimized nip angle enhance production efficiency. Moreover, the broader intake opening accommodates larger feed sizes.

SIDDHI jaw crushers exhibit an aggressive motion of the pitman and a long stroke in the bottom of the cavity. These crushers are of the single-toggle type, featuring a deep, symmetrical crushing chamber and a large feed opening relative to their size. The ideal nip angle ensures smooth material flow and high reduction efficiency.

Request a Quote
High production and reduction

Typically, jaw crushers achieve a reduction ratio of 1:2 or 1:3, influenced by factors like bulk density, crushability, size distribution, and moisture content. A larger feed opening allows unrestricted entry of rocks into the crusher’s cavity, while a steeper nip angle reduces wear on jaw dies and improves material flow. The stroke is amplified from top to bottom, with the longest stroke occurring at the bottom of the cavity. This design enhances capacity and overall reduction ratio, resulting in high production across various operations.

  1. Excellent material intake capability
  2. Ample cavity cross-section ensuring effective material capture
  3. Intense pitman motion for optimal throughput and reduction
  4. Optimized nip angle maximizing production efficiency

Simple to set up, use and manage

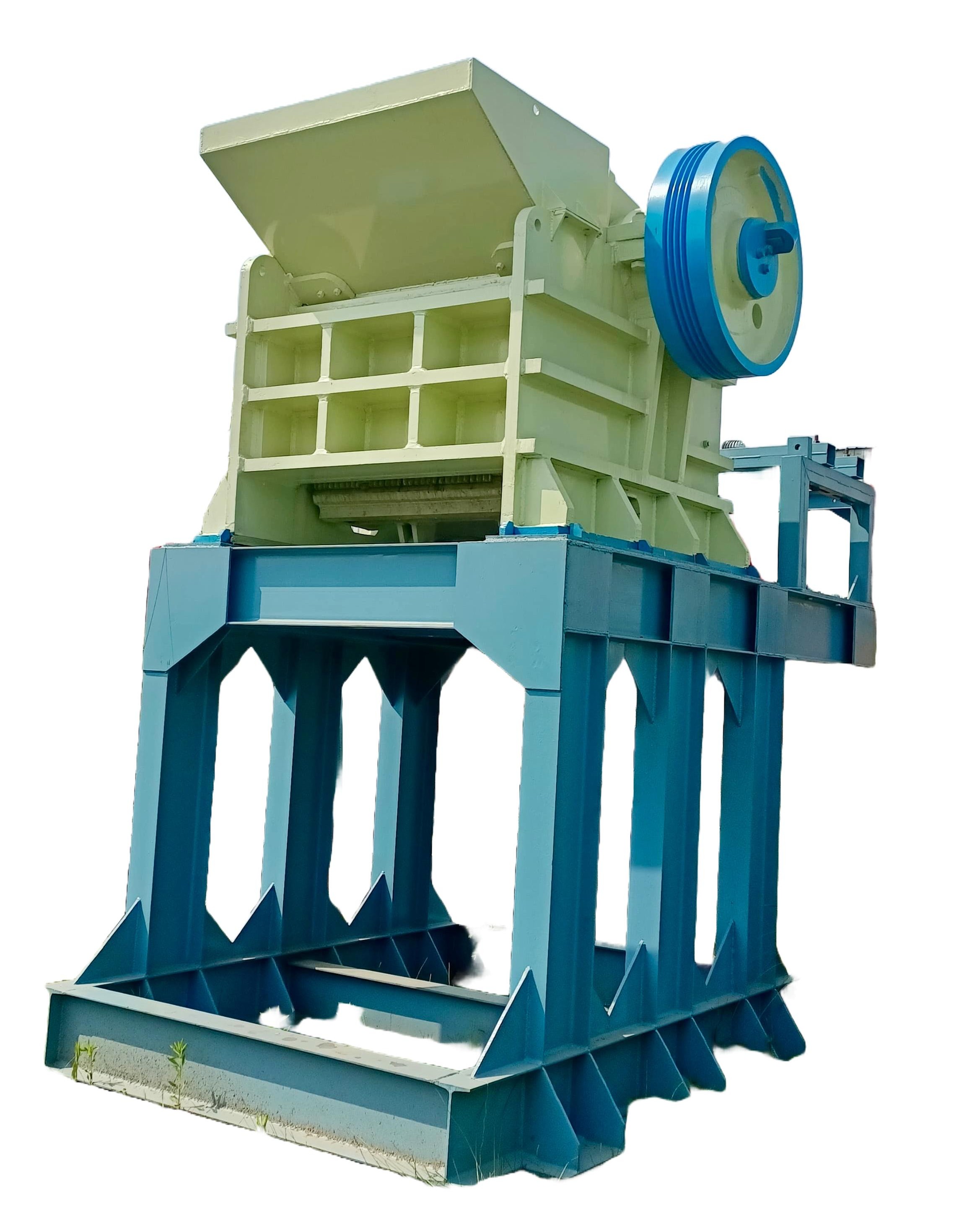

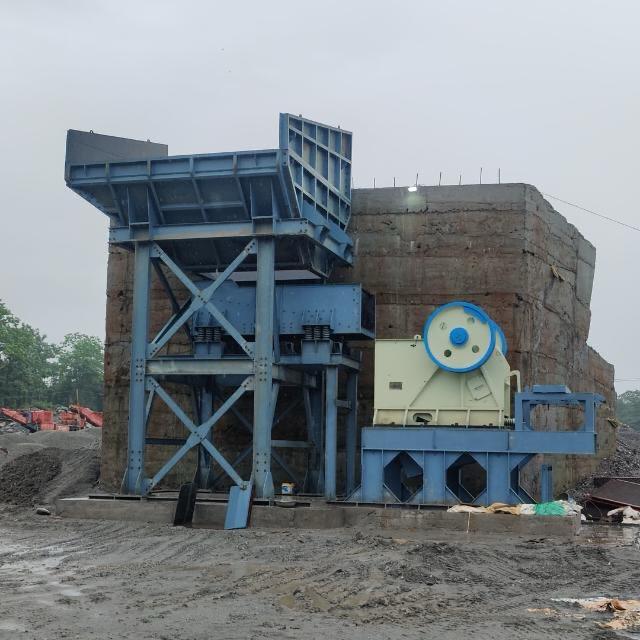

Jaw crushers feature a modular design with skid to expedite installation and reduce civil costs. This allows for rapid setup, often within a few days, significantly minimizing on-site engineering and fabrication requirements.The feed chute is designed to ensure a continuous flow of material from the feeder to the crusher, preventing interruptions.

  • Breaker
  • Granulator
MODEL UNITS SJC 1610 SJC 1612 SJC 2010 SJC 2012 SJC 2416 SJC 3020 SJC 3625 SJC 4236 SJC 5248
FEED OPENING IN MM 406 x 254 406 x 304 508 x 254 508 x 304 610 x 406 762 x 508 914 x 635 1067 x 914 1321 x 1219
MAX FEED SIZE IN INCH 9 11 9 11 15 19 24 35 47
CSS RANGE IN MM 25 - 65 25 - 65 25 - 65 25 - 65 100 - 175 100 - 200 100 - 200 150 - 275 175 - 275
CAPACITY IN TPH 8 - 20 11 - 23 9 - 25 11 - 30 30 - 60 50 - 120 50 - 150 100 - 250 200 - 350
MOUNTING TYPE - OPTIONAL SKID
JAW PLATE REPLACEABLE & REVERSIBLE
LUBRICRATION GREASE
POWER IN HP 30 30 40 40 50 70 100 150 200
WEIGHT IN TON 4 4.2 4.5 4.8 5.8 12 19 28 42
MODEL UNITS SJC 2406 SJC 2408 SJC 3606 SJC 3608 SJC 4206 SJC 4208 SJC 4808
FEED OPENING IN MM 610 x 152 610 x 230 914 x 152 914 x 203 1067 x 152 1067 x 203 1218 x 203
MAX FEED SIZE IN INCH 5 7 5 7 5 7 7
CSS RANGE IN MM 20 - 37 20 - 37 20 - 37 20 - 37 20 - 37 20 - 37 20 - 37
CAPACITY IN TPH 10 - 18 12 - 18 20 - 30 25 - 45 30 - 45 33 - 48 38 - 55
MOUNTING TYPE - OPTIONAL SKID
JAW PLATE REPLACEABLE & REVERSIBLE
LUBRICRATION GREASE
POWER IN HP 30 30 50 50 60 60 75
WEIGHT IN TON 4.7 5.2 7 9 8.5 9 13
