Drum Mix
Drum Mix
- Categories:
- Drum Mix
Key Highlights
- Efficiency: Drum mix plants are highly efficient, with the ability to produce a continuous flow of asphalt, making them ideal for large projects that require significant quantities of asphalt.
- Portability: Drum mix plants are designed to be portable, which means they can be moved from one job site to another relatively easily.
- Lower Initial Costs: Compared to batch plants, drum mix plants often have lower setup and operational costs, making them a cost-effective solution for many contractors.
×
Request a Quote
- Environmental Considerations: Modern drum mix plants include features such as baghouse filters, dust collectors and pollution control unit to minimize the environmental impact, reducing emissions and dust.
- Maintenance: These plants generally require less maintenance than batch plants due to their simpler design and fewer moving parts.
Applications
- Highway Construction: Due to their high output, drum mix plants are ideal for highway and large road projects.
- Airport Runways:The continuous production is beneficial for large-scale projects such as airport runways where consistency and quality are critical.
- Rural and Urban Roads: They are versatile and can be used for a variety of road construction projects, both large and small scale.
Technical Specification
| MODEL | DM-45 | DM-50 | DM-60 | ||
|---|---|---|---|---|---|
| PLANT CAPACITY AT 3% MOISTURE CONTENT | 45-60 t/h | 60-90 t/h | 90-120 t/h | ||
| DIMENSION OF THERMO DRUM UNIT (LXWXH) | 10.60 x 2.50 x 2.70 m | 11.80 x 2.70 x 2.80 m | 13.90 x 2.90 x 3.10 m | ||
| BURNER SIZE | 200-250 Lph | 300-350 Lph | 300-350 Lph | ||
| BURNER TYPE | Hi-Lo Type Pressure Jet | ||||
| FUEL TYPE | HSD, LDO | ||||
| EXHAUSTER | 10500 CFM | 14500 CFM | 15500 CFM | ||
| DUST COLLECTOR | 15 Cones | 20 Cones | 24 Cones | ||
| DRUM DIAMETER | 01.20 m | 01.50 m | 01.80 m | ||
| FEEDER CAPACITY (TOTAL) | 32000 kg | 44000 kg | 44000 kg | ||
| BITUMEN TANK (CAPACITY IN 1000 LTR) | 20 | 20 | 25 | ||
| BITUMEN TANK BURNER TYPE | Single Phase | ||||
| LIME FILLER CAPACITY | 1000 kg | 1000 kg | 1000 kg | ||
| AUXILIARY BELT SIZE | 0.50 m x 02.50 m | 0.50 m x 02.75 m | 0.50 m x 02.75 m | ||
| SLINGER CONVEYOR BELT SIZE | 0.60 m x 15.00 m | 0.60 m x 16.00 m | 0.60 m x 15.00 m | ||
| LOADOUT CONVEYOR BELT SIZE | 0.60 m x 18.00 m | 0.60 m x 18.00 m | 0.60 m x 20.00 m | ||
| GATHERING CONVEYOR BELT SIZE | 0.60 m x 24.00 m | 0.60 m x 26.00 m | 0.60 m x 26.00 m | ||
| VIBRATING SCREEN (SCREENING AREA) | 0.80 m x 01.50 m | 0.80 m x 01.50 m | 0.80 m x 01.50 m | ||
| GEAR DETAIL | |||||
| AUXILIARY | SMSR Type 20:1 | SMSR Type 20:1 | SMSR Type 20:1 | ||
| GATHERING CONVEYOR | SMSR Type 20:1 | SMSR Type 20:1 | SMSR Type 20:1 | ||
| SLINGER CONVEYOR | SMSR Type 05:1 | SMSR Type 05:1 | SMSR Type 05:1 | ||
| SLINGER CONVEYOR | SMSR Type 05:1 | SMSR Type 05:1 | SMSR Type 05:1 | ||
| LOADOUT CONVEYOR | SMSR Type 20:1 | SMSR Type 20:1 | SMSR Type 20:1 | ||
| SCREW CONVEYOR | NU Worm Type 40:1 | NU Worm Type 40:1 | NU Worm Type 40:1 | ||
| DRUM DRIVE UNIT | 7"SNU Worm Type 20:1 | 8"SNU Worm Type 20:1 | 9"SNU Worm Type 20:1 | ||
| BITUMEN PUMP | Gear Type | Gear Type | Gear Type | ||
| MODEL | UNIT | QTY | DM-45 | DM-50 | DM-60 |
|---|---|---|---|---|---|
| AUXILIARY CONVEYOR | kW | 4 | 06.00 | 06.00 | 06.00 |
| GATHERING CONVEYOR | kW | 1 | 03.75 | 03.75 | 03.75 |
| VIBRATING MOTOR (SCREEN & FEEDER) | kW | 2 | 01.00 | 01.00 | 01.00 |
| SLINGER CONVEYOR | kW | 1 | 03.75 | 03.75 | 03.75 |
| DRUM DRIVE UNIT | kW | 1 | 15.00 | 18.75 | 30.00 |
| EXHAUSTER | kW | 1 | 15.00 | 18.75 | 22.50 |
| SCREW CONVEYOR | kW | 1 | 01.50 | 01.50 | 01.50 |
| DRYER BURNER BLOWER | kW | 1 | 03.75 | 05.63 | 09.38 |
| PUMP (PHF UNIT) | kW | 1 | 1.50 | 1.50 | 02.25 |
| LOADOUT CONVEYOR | kW | 1 | 03.75 | 03.75 | 05.63 |
| HYDRAULIC POWER PACK | kW | 1 | 02.25 | 02.25 | 02.25 |
| LIME-MINERAL FILLER | kW | 1 | 00.75 | 00.75 | 00.75 |
| TWIN LUBE AIR COMPRESSOR | kW | 1 | 03.75 | 03.75 | 03.75 |
| BITUMEN PUMP | kW | 1 | 03.75 | 03.75 | 03.75 |
| POLLUTION UNIT (WATER PUMP) (OPTIONAL) | kW | 1 | 1.50 | 1.50 | 1.50 |
| HEATER (OPTIONAL) | kW | 1 | 12.00 | 18.00 | 18.00 |
| TOTAL(KW) | kW | 79.00 | 94.38 | 115.76 | |
| TOTAL AREA REQUIRED FOR INSTALLATION | m2 | 35 X 35 m2 | 38 X 38 m2 | 45 X 45 m2 |

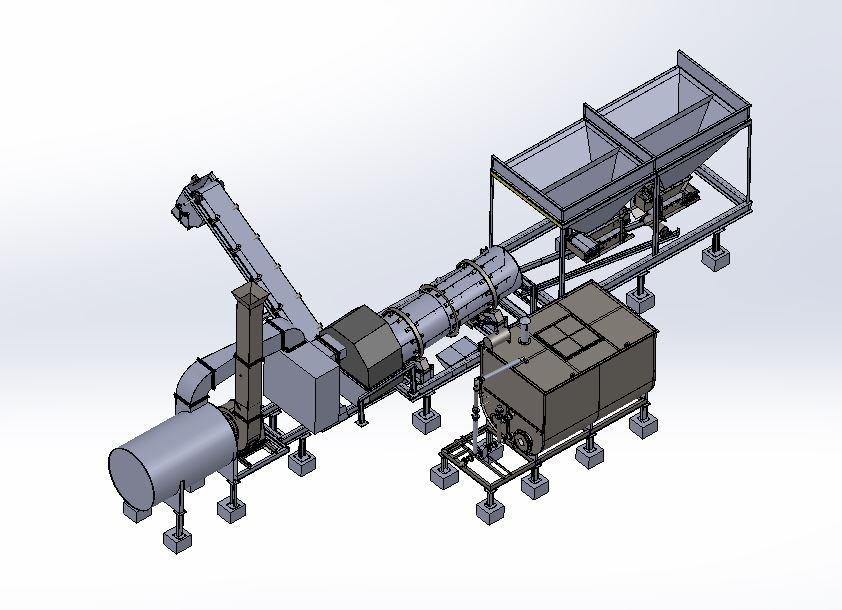

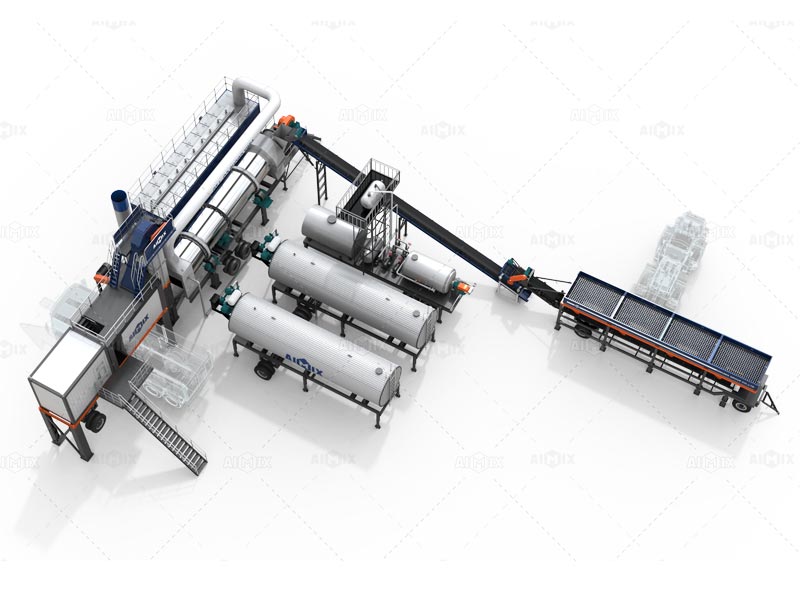

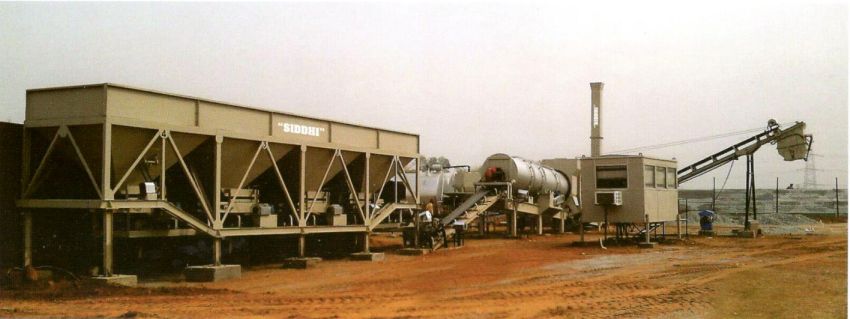

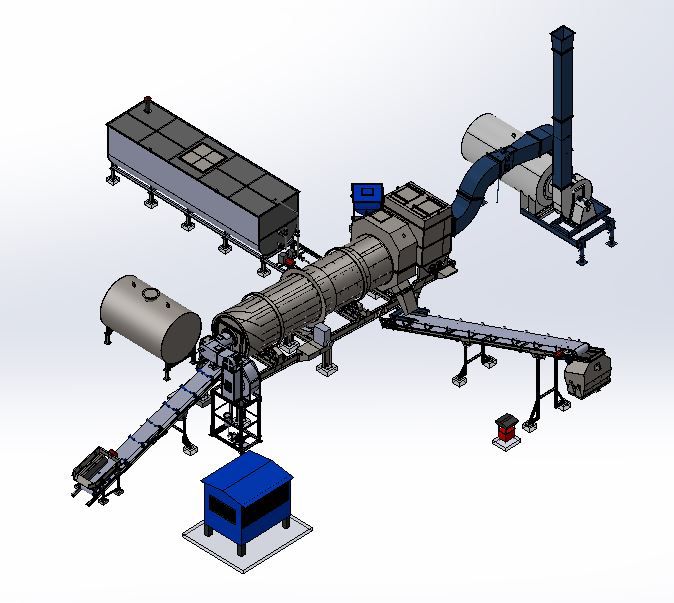

Gallery
